ZB-2571-PA: Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Slave), communication distance up to 700 meters

ZB-2571-PA

E-mail this Product

Product Reference & Support :

User's Manual

Quick Start

Cut Sheet

Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Slave), communication distance up to 700 meters

Product Pricing:

ZB-2571-PA: $619.00

Please Call 1-888-971-9888 for Volume and OEM discount pricing!

Features

The ZB-2570 series is a host ZigBee converter, and the ZB-2571 series is a slave ZigBee converter. Each features an Ethernet/RS-485/RS-232 interface. Devices that have an Ethernet/RS-485/RS-232 interface are also able to be connected using the ZB-2570 and ZB-2571 series. By distributing host and slave ZigBee converters in the field, users can easily build a wireless network for monitoring and control.

ZigBee is based on the IEEE 802.15.4 standard for wireless personal area networks (WPANs). It is aiming at applications that require secure networking as well as high fl exibility for network expansion anytime. It is also widely used in the industrial control field, hospitals, labs and building automation.

Features

ISM 2.4 GHz Operating Frequency
Fully Compliant with 2.4 G IEEE802.15.4/ZigBee Specifications
Wireless transmission range up to 100 m (ZB-2570-T/ZB-2571-T)
Wireless Transmission Range up to 700 m (ZB-2570-PA/ZB-2571-PA)
Topologies Supported: Star, Cluster Tree, and Mesh
GUI Configuration Software (Windows Version)
DIN-Rail Mountable

Applications

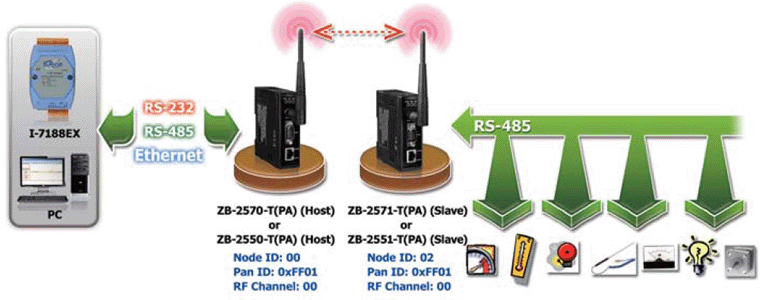

ZB-2570

Specifications & Additional Information

ZigBee Module
RF Channels	16
Receiving Sensitivity	-102 dBm
Network Topology	Star, Mesh and Cluster tree
Antenna (Omni-Directional)	2.4 GHz – 5 dBi
Transmission Range	700 m
Certification	No
General
Module Type	Slave
Communication Interface
COM 0	D-Sub 9 Male Non-isolated; RS-232 (TxD, RxD, GND); RS-485 (DATA+, DATA-;internal self-tuner ASIC)
Ethernet	10/100 Base-TX (Auto-negotiating, auto MDI/MDI-X, LED indicators)
LED Indicators
ZigBee Net State	Green
ZigBee RxD	Yellow
Power	Red
Power
Protection	Power reverse polarity protection
EMS Protection	ESD, Surge, EFT
Required Supply Voltage	+10 VDC ~ +30 VDC
Power Consumption	4 W (max.)
Connection	5-Pin 5.08 mm Removable Terminal Block
Mechanical
Casing	Plastic
Flammability	UL 94V-0 fire-retardant materials
Dimensions (W x L x H)	33 mm x 107 mm x 78 mm
Installation	DIN-Rail
Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-40 °C ~ +80 °C
Relative Humidity	5% ~ 90% RH, Non-condensing
