- 16-Bit Microprocessor inside with 80MHz
- Siemens SPC3 PROFIBUS controller
- Supports PROFIBUS DP-V0 slave
- PROFIBUS transmission rate detect automatically
- Max transmission speed up to 12M bps for PROFIBUS and 115.2K
bps for COM Port
- COM Port driver has 1K bytes QUEUE input buffer & 512 bytes
QUEUE output buffer
- Max length of in/output data is 128 Bytes
- Built-in self-tuner ASIC controller on RS-422/485 port
- 2500Vrms High Speed iCoupler Isolation Protection for PROFIBUS
network
- 3000VDC Isolation Protection on the PROFIBUS side
- Provide LED indicators
- Built-in Watchdog
- Mountable on DIN Rail
1.2 Specification
COM Port specs:
- Serial port - RS-232/RS-422/RS-485

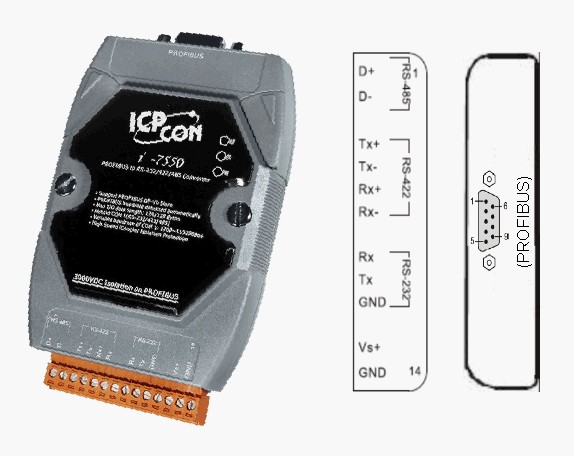

- Serial port interface: 14-pin screw terminal block
- Baud Rate：1200/2400/4800/9600/19200/38400/57600/115200 bps
- Data Format: 7/8 data bits, None/Odd/Even parity bit, 1 stop bit
PROFIBUS specs:
- PROFIBUS interface connector: D-sub 9-pin female
- Baud Rate: 9.6K/19.2K/45.45K/93.75K/187.5K/500K/1.5M/3M/6M/
12Mbps
- Address Setting: 0~126 (set by DIP switch or EEPROM)
i-7550 PROFIBUS to RS-232/422/485 Converter User's Manual (Version 1.01) PAGE：6
Power requirement:
- Unregulated +10V ~ +30V DC
- Power reverse protection, Over-Voltage brown-out protection
- Power consumption 2.5W
Module specs:
- Dimensions: 119mm X 72mm X 33mm
- Operating temperature: -25 ~ 75 ºC
- Storage temperature: -30 ~ 85 ºC
- Humidity：5 ~ 95%, non-condensing

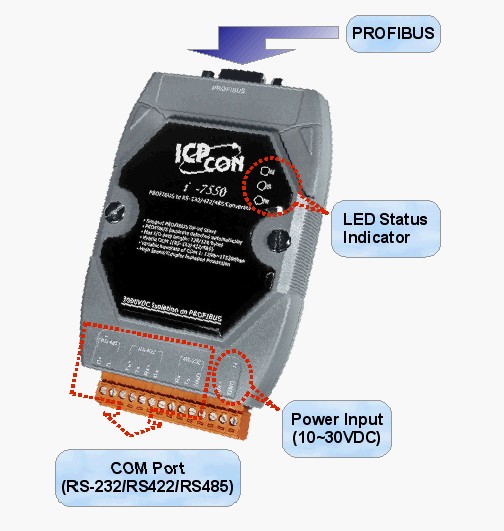

- LED Status Indicators：
|
PWR LED |
Show the power state/COM Port
data transmit and receive
state |
| ERR LED |
Show error state |
| RUN LED |
Show communication state of
PROFIBUS |
I-7550 is a converter that is specially designed for the slave device of PROFIBUS DP protocol. It offers RS-232, RS-422, and RS-485: three ways of communication. With the Hybrid COM 1 design, users can readily choose one type of com port to use. By using this module, users can easily put their RS-232/422/485 devices into PROFIBUS networks.
- Applications
-
Industrial Automation
-
Factory Automation
-
Process Automation
|
| I-7550 |
| Protocol & Hierarchy |
DP-V0 Slave |
|
Supports PROFIBUS Transmission Rate (Kbps)
|
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
|
Transmission Rate Setting
|
detected automatically |
|
Max Input Data Length
|
128 Bytes |
|
Max Output Data Length
|
128 Bytes |
|
Address Setting
|
0~126 set by DIP switch |
|
Hybrid COM 1
|
RS-232/422/485 with “Self Tuner” inside |
|
Supports COM 1 Baudrate (Kbps)
|
1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2 |
|
Supports COM 1 Data Format
|
7/8 data bits, No/Odd/Even parity, 1 stop bit |
|
Indicators
|
PWR, ERR, and RUN LEDs |
|
Network Isolation Protection
|
High Speed iCoupler |
|
DC Isolation Protection
|
3000VDC on PROFIBUS side |
| CPU |
80186, 80MHz |
| Flash |
512K Bytes |
| SRAM |
512K Bytes |
| EEPROM |
16K Bytes |
| Watch Dog Timer |
CPU Built-in |
| COM 1 |
RS-232(3 wires)/RS-422/RS-485 |
| Baudrate |
Up to 115.2Kbps |
| PROFIBUS Interface |
9-pin D-Sub(Female) |
| PROFIBUS Controller |
Siemens SPC3 |
| PROFIBUS Transceiver |
ADI ADM2486 iCoupler Isolated Transceiver |
| Transmission Rate |
Up to 12Mbps |
| Power Requirement |
10V ~ 30V |
| Power Consumption |
2.5W |
| Operating Temp. |
-25℃ ~ +75℃ |
| Storage Temp. |
-30℃ ~ +85℃ |
| Humidity |
5% ~ 95% |
| Dimensions |
119x72x33 mm |
|
