5-Port Industrial 10/100 Mbps Unmanaged Ethernet Switch, DIN-Rail mount, manufactured with MIL-SPEC conformal coating. Conformal coating will allow operating temperature range to be increased to -40ºC~85ºC.

• Automatic MDI/MDI-X crossover for plug-and-play
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Store-and-forward
• Supports 4 kV Ethernet ESD protection
• 1.4Gbps high performance memory bandwidth.
• Integrated look-up engine with dedicated 1024 unicast MAC addresses.
• Supports +10 ~ 36V DC voltage
• Supports operating temperatures from -40°C ~ +75°C
• DIN rail mount for industrial usage
• 1.4Gbps high performance memory bandwidth.

• Compatibility:IEEE 802.3, IEEE802.3u, IEEE802.3x
• Interface: 10/100 Base-T(X)
• Port: 10/100 Mbps x 5 (Shielded RJ-45 Jack)

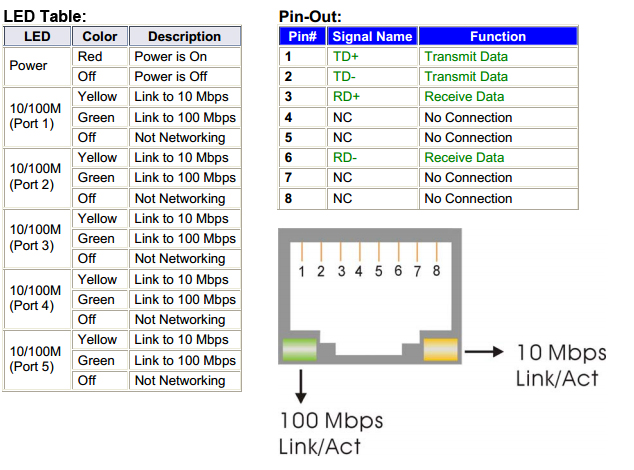

• Provides LEDs for network and power monitoring
• Environment:
  • Operating temperature: -40°C ~ +75°C
  • Storage Temperature: -40 ~ +85°C
  • Relative Humidity: 10 ~ 90% HR, non-condensing

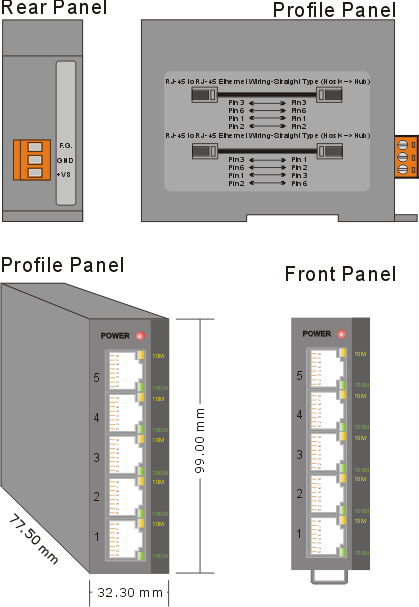

• Dimensions: 33 mm x 78 mm x 107 mm (W x L x H)
• Power requirements: +10 ~ 36V DC (Removable Terminal Block)
• Power consumption: 0.1A@24VDC, ± 5% arrowed with 10M Full duplex.
  • 0.09A@24VDC, ± 5% arrowed with 100M Full duplex.
