ICP DAS Data Communication

I-7565-DNM can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". I-7565-DNM supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.

Besides, I-7565-DNM uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Win98/Win2000/WinXP. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-7565-DNM is developed for this purpose.

Applications

• Industrial Machinery • Building Automation • Medical • Maritime • Restaurant Appliances
• Laboratory Equipment & Research

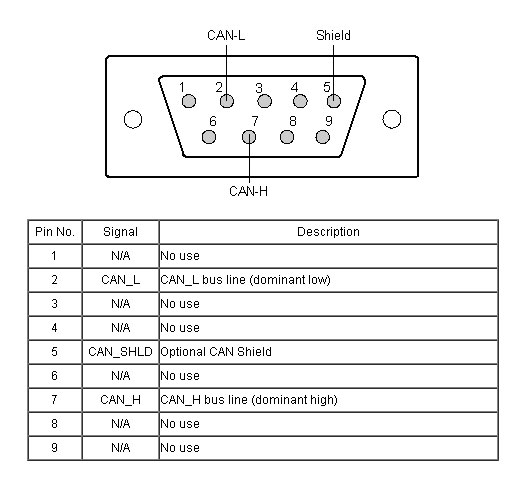

Features

• Fully compliant with USB 1.1/2.0(Full Speed)
• No external power supply is required as I-7565 takes it's power from the USB bus
• DeviceNet Version: Volume I & II, Release 2.0
• Programmable Master MAC ID and Baud Rate.
• Baud Rate: 125k, 250k, 500k
• Support Group 2 and UCMM connection
• I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
• I/O Length: 512 Bytes max (Input/Output) per slave
• Slave Node : 63 nodes max
• Support Auto-Search slave device function.
• Support on-line adding and removing devices
• Support Auto-detect Group 2 and UCMM device
• Auto-Reconnect when the connection is broken
• Status LED: RUN, MS, NS
• Free Software development tools for Windows
• Windows 98/ME/2000/XP/Linux drivers supported

Firmware Features

• Programmable Master MAC ID.
• Programmable transfer-rate 125K, 250K, 500K.
• Each port support maximum nodes up to 64
• Support Group 2 Only Server functions
• Support UCMM functions
• Predefined Master-Slave Connection Set
• The maximum Fragment number is (Input/Output) up to 64
• Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
• Support Auto-Scan slave device function.
• Support on-line adding and removing devices.
• Support Auto-Reconnect when the connection is broken.

Performance Test

Software Utility Features

Diagnosis

This utility supports to search all devices and specific devices in the network. These functions help the users to configure the connection of the slave devices. Anymore, the software also can diagnose the remote slave devices when building the DeviceNet network.

Configuration

This software supports the users to configure the I/O connection of the devices by searching devices or manual setting. After configuring the I/O connection, the information would be saved into the EEPROM of the I-7565-DNM. The users can export the data from the EEPROM easily. Correspondingly, the users can import the data into the EEPROM.

Remote I/O access

The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.
