CNT-PROFI: PROFIBUS Connector

CNT-PROFI

E-mail this Product

Product Reference & Support :

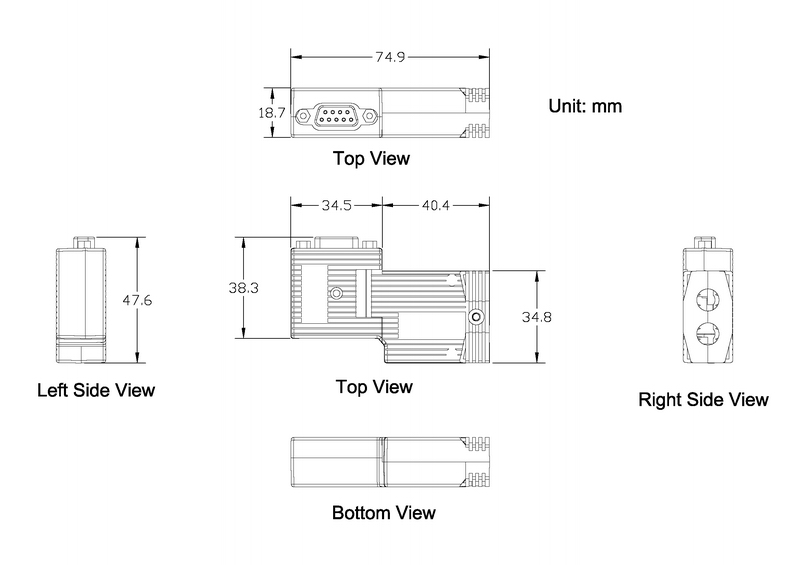

Dimensions

Structure

PROFIBUS Connector

Product Pricing:

CNT-PROFI: $39.00

Please Call 1-888-971-9888 for Volume and OEM discount pricing!

Features

PROFIBUS (PROCESS FIELD BUS) which is anchored in the international standards IEC 61158 and IEC 61784 is an open, digital communication system with a wide range of applications, particularly in the fields of factory and process automation. The CNT-PROFI connector is used to connect a PROFIBUS node to the PROFIBUS line featuring quick-connect technology, making the stripping of bus conductors superfluous. The connector is quick to install, and has a plastic housing and integrated terminating resistors. Anyway the CNT-PROFI could link a PROFIBUS device to a PROFIBUS line easily and fast.

profibus

Applications

Features

Built-in switch to select terminal resistor.
2 cable entries.

Specifications & Additional Information

Cable outlet	90° cable outlet
Connector	9-pin, D-Sub male connector
Baud rate	9.6kbps ~ 12Mbps
Operating temperature	-25℃ ~ 75℃
Storage temperature	-30℃ ~ 80℃
Humidity	10 ~ 90% RH, non-condensing
